Cycle a reflux condenser onto the Schlenk line. Here are our top tips for running a reflux reaction when using a round bottom flask including some common errors to avoid.
Turn on the stir plate.
Round bottom flask with reflux condenser. Make sure that the round bottom flask and the reflux condenser are cleaned and dried thoroughly. Add 18 g of 3-methyl-2-butenoic acid 100 ml of absolute methanol and 5ml of concentrated sulfuric acid into the round bottom flask. Put a boiling chip into the flask.
Clamp the flask. Round bottom flask fitted with a water-cooled reflux condenser. Absolute methanol 75 mL is rapidly added to the flask through the condenser.
Vigorous bubbling commences as hydrogen gas is evolved. Make sure there are no open flames or ignition sources in the area After all the sodium has been consumed methyl. Here are our top tips for running a reflux reaction when using a round bottom flask including some common errors to avoid.
Picking the wrong condenser. First and foremost its important to select the right equipment for the job. Your condenser must be suitable for the volume of your solution as well as suitable for its boiling point.
It consists of a round bottom flask a reflux condenser water-jacketed and heating source here. The entire setup is connected to an inert gas line since the used starting material or products are air sensitive in this case. Round bottom flasks suffer from poor stirring when compared with Erlenmeyer flasks as they cant accept large stir bars and material can become trapped at the base.
For a reflux set-up a condenser is typically attached to the middle or only neck of the flask being used. The weighted soybean oil was added into a three-necked round bottom flask with reflux condenser and thermometer. According to a certain methanoloil molar ratio methanol soybean oil and catalyst were placed in a vessel and the reaction vessel was placed in a water bath under stirring.
Use a Keck clip to hold the reflux condenser to the round bottom flask. Clamp the reflux condenser and the round bottom flask to the monkey bars or support stand. Attach the rubber tubing and slowly turn on the water.
Plug the heating mantle into the grounded variable transformer and turn the power to 45 if on a scale of 0-100. Turn on the stir plate. Allow the mixture to heat at reflux for 1 hour.
Reflux Condenser 1 Buchner Funnel 1 100 mL Flask with Vacuum Adapter 1 Procedure. In a 25 mL single-neck round-bottom flask equipped with a reflux condenser with a calcium chloride tube add 1 g of glucose 5 ml of acetic anhydride and 1 g of anhydrous sodium acetate. Reflux for 10 minutes then cool the solution by pouring it into 30 ml.
Method A Step 1. Cycle a reflux condenser onto the Schlenk line. Attach a gas inlet adapter to the top of the condenser and a Schlenk cap or small round bottom flask to the bottom of the condenser greasing the male joints and ensuring a uniform seal.
Maybe I dont understand your question well but often in the lab when we do reflux heating we dont really attach the liebig condenser. You fix the flask using a clamp. And gravity holds the liebig condenser into place.
You can put a clamp around it to hold it straight but youd better not tighten it too much because these things are fragile. Gather all necessary pieces of glassware needed for a reflux apparatus round bottom flask reflux condenser rubber tubing heating mantle and rheostat In the fumehood measure out 06 mL of 1-decene 185 mL of cyclohexene and place it into a round bottom flask. Dont forget a boiling stone.
The picture on the left shows the basic reflux setup consisting of are heating mantle a round bottom flask a Liebig condenser used in reflux mode and a gas adapter on top. The picture on the right side shows the flask with a matching heating mantle and a stirring bar. In choosing the size of your setup one has to keep the following issues in.
Equipment Included Round-bottom flask. Condenser in a vertical position is known as reflux position o Control the product we get by positioning the condenser in reflux position or distillation o By using reflux position the 2 nd oxidation product is produced. It is used in situations which require more than one outlet from a round-bottom flask.
For instance in a reflux of a reaction mixture sometimes it is necessary to condense the rising vapors and add reactants to the mixture at the same time. In this situation one of the upper joints of the Claisen adaptor would go to a condenser and one to a dropping or separatory funnel. Back to Glassware and Equipment.
In 250 ml round bottom flask provided with the reflux condenser protected by the calcium chloride drying tube. Place 50 gm of Succinic acid and 865 gm of sulphuric acid or acetic anhydride reflux the mixture gently on a water bath with occasional shaking until clear solution is. The two most important pieces of equipment needed for a reflux are a round bottom flask and a water condenser Another piece of equipment thats helpful to have for a reflux experiment is a stir plate.
The Asynt CondenSyn waterless air condenser shown connects via B24 neck to a round bottom flask. However CondenSyn is available to suit any standard size connection with B19 also very popular. Independent tests were performed by a leading UK University to evaluate the performance for safe use in their research and teaching laboratories.

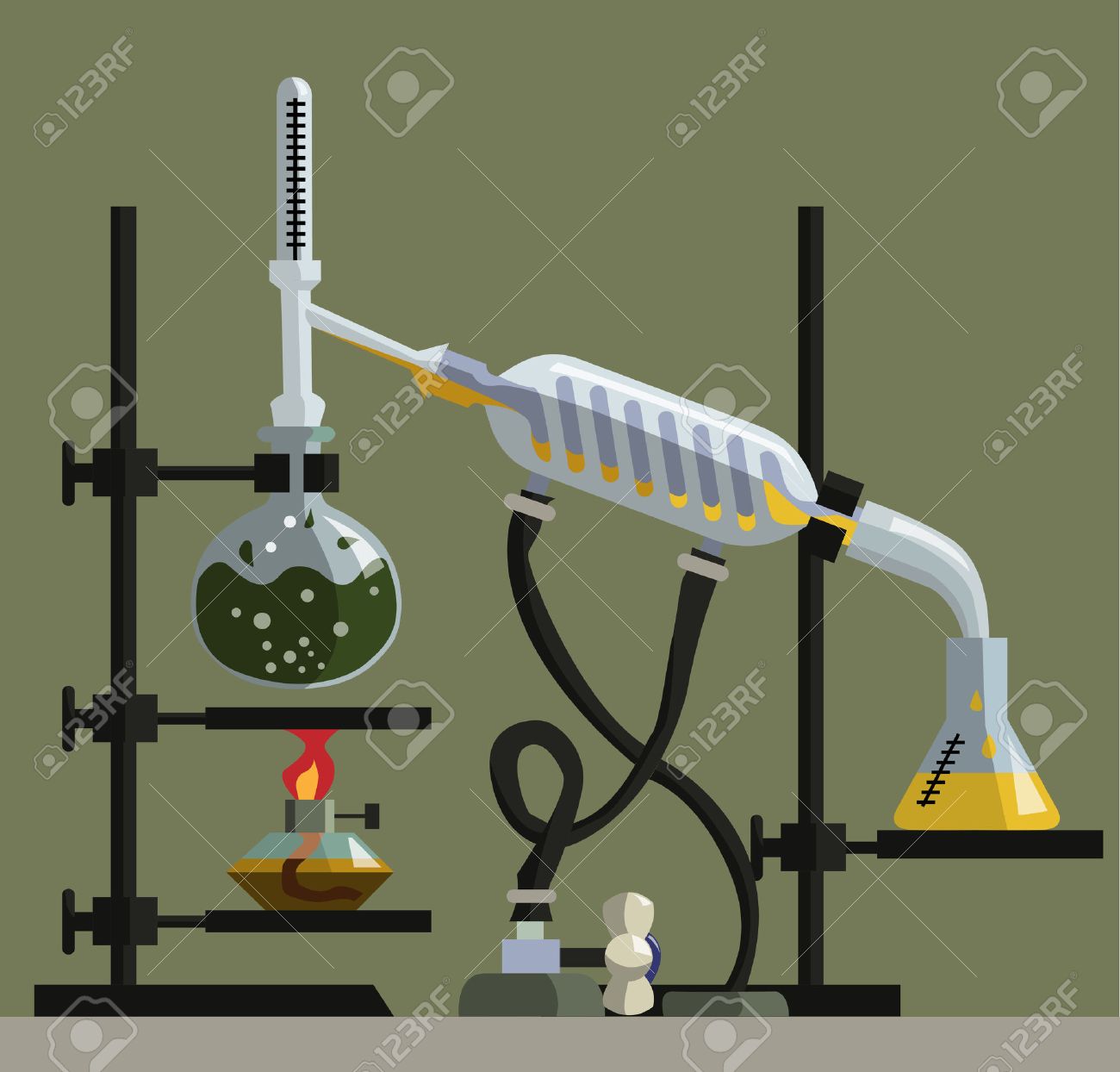

Round-bottom flask equipped with a stir bar reflux condenser and N 2 inlet is added tri-O-acetyl-D-glucal 0375 mmol CH 2 Cl 2 8 mL the thiol or alcohol compound 044 mmol and a 5 mol HI solution 75 mL of a 024 M solution of HI prepared by dissolving 0158 g of I 2 and 90 mL of thiolacetic acid in CH 2 Cl 2 to the mark with. Royalty-free stock vector ID. Apparatus for distillation purification and separation of volatile liquids.
The installation consists of round-bottom flask reflux condenser thermometer spiral refrigerator flat-bottomed flask. A reflux vessel such as a round bottom flask is attached to a water cooled condenser which prevents vapors from escaping during the heating process. Water enters the condenser from the bottom and exits at the top.
Reflux can be used extract a compound or group of compounds from a solid matrix. For example in 164261 dichloromethane solvent. Place 100 mL of methanol CH3OH in a 250-mL round bottom flask.
Obtain a condenser from your glassware kit the condenser without the three prongs projecting into the cavity. Add your reflux condenser to the top of your round bottom and clamp it vertically above the round bottom flask.
