These are simple suctions carbs. Early Briggs Stratton Engines This document pictures many of the carburetors used on Briggs Stratton engines up until about 1950 and the engine models where they were used.

Briggs 092502 3161 01 Carburetor Governor Linkage Spring Flickr from www.flickr.com

A single needle valve resides near the rear of the carburetor unit that faces the push handles of the mower or rototiller.

Briggs and stratton vacu jet carburetor. How to video on cleaning and repairing a Briggs and Stratton VACU-JET carb on a Snapper sv212 push mower. All tank-mounted carburetors use a diaphragm to pull gas from the gas tank. Different Types Of Briggs Tank-Mounted Carbs.

Pulsa-Jet carbs have two fuel tubes a long and short that stick out of the bottom of the carb. Vacu-Jet carbs have a single fuel tube. If your Briggs tank-mounted carb has a primer bulb its a Pulsa-Prime carb.

Operating and Maintenance Instructions Manual and Diaphragm Installation Instructions tag. For Briggs and Stratton Automatic Choke Vacu-Jet Carburetors on Models92500 to 92598. Item 1 Briggs Stratton 494622 Replacement Carburetor Kit for Vacu-Jet 3 35hp 1 - Briggs Stratton 494622 Replacement Carburetor Kit for Vacu-Jet 3 35hp 1550 Free shipping.

Lets take a look at how the pulse jet carburetor works. This video is designed to be a quick intro to the topic of repairing these carburetors. In Taryl Wrestles A Pulsa Jet Carburetor Taryl will show you the proper way to get a Pulsa Jet Carburetor running.

From cleaning the tank to replacing the. The Briggs and Stratton Pulsa Jet carburetor regulates fuel flow on the aluminum series of engines. A single needle valve resides near the rear of the carburetor unit that faces the push handles of the mower or rototiller.

Open the needle valve 1 12 turns in a counter-clockwise direction. This setting allows the engine to be started and. Will a pulsa jet carb work in the place of what my engine originaly had is a vacu-jet carb.

I ask this becouse my vacu-jet carb is the old style with the die cast throttle assyembly the one were you back the crack screw out all the way and take the throttle body out the same as a 6s briggs the problem is that the carb body is extreemly wore out and will not let the engine idle well but. BS 060112 Vacu-jet slide choke starting. I have a Scott Bonnar 38 series edger with a 2hp Briggs Stratton engine.

The engine runs well when started. I have done a bit of work on it such as removed the head and de carboned and also cleaned out the fuel tank and installed new carburetor gaskets and a needle valve kit. Briggs Stratton Vacu-Jet Pulsa-Jet Carburetor.

Figure 4-2 illustrates the Vacu-Jet mechanism which is distinguished by a single pickup tube and tandem discharge ports controlled by flow through a single jet. Figure 4-22 shows the three basic forms of this carburetorThe Pulsa-Jet derives from the Vacu-Jet and in its various permutations. Taking the Carb off diaphragm and cleaning it.

This is the same engine on the older lawnmowers with a Briggs Stratton motor without a primer. Briggs Stratton Vacu-Jet Pulsa-Jet Carburetor. Figure 4-2 illustrates the Vacu-Jet mechanism which is distinguished by a single pickup tube and tandem discharge ports controlled by flow through a single jet.

Figure 4-22 shows the three basic forms of this carburetorThe Pulsa-Jet derives from the Vacu-Jet and in its various permutations. Carburetor and Gas Tank. The Vacu-jet carburetor was fitted to several small Briggs models including the 5s and 6s.

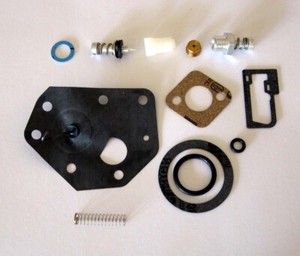

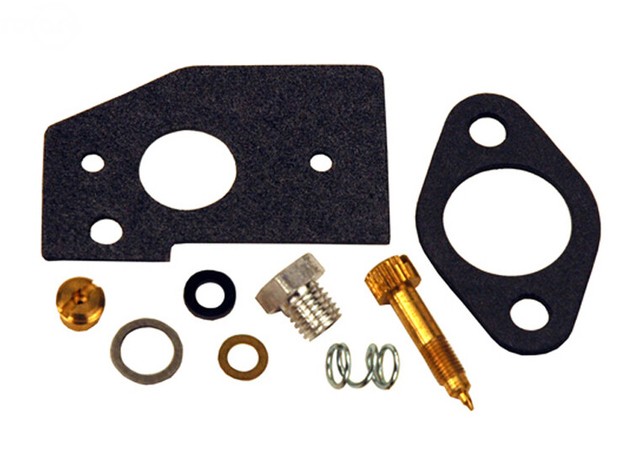

There is a slide choke and it relies on vacuum to pull gas into the engine. A single tube draws fuel up from the gas tank below it. This Is A Carburetor Overhaul Kit For 3-35 Vertical Engines With A Vacu-Jet Carburetor Briggs Stratton 494622 For 3-35 Vertical Engines With A Vacu-Jet Carburetor Brand Name.

Briggs Stratton New 3 from 1810 FREE Shipping on orders over 2500 shipped by Amazon. Carburetor Kit Replaces Briggs Stratton 494622. 520-545-BR Carburetor Kit Fits most 3 and 35 HP vertical engines with Vacu-Jet carburetors PN.

Click Here To Enlarge Picture. In Depth video on adjusting the carburetor found on older model Briggs and Stratton engines. I show various examples and tips on how to tune a carburetor to.

This problem is usually common with Briggs and Stratton Vacu-Jet and Pulsa-Jet diaphragm style carburetors. AThe diaphragm is stiff and must be replaced. This top information is for carburetors installed on Sprint Classic and Quattro 30 to 40 hp engines.

Remove the two bolts holding the gas tank to the engine. Preview Show more. Early Briggs Stratton Engines This document pictures many of the carburetors used on Briggs Stratton engines up until about 1950 and the engine models where they were used.

There were some variations on these carburetors and many of the engines used more than one type. Hopefully this listing will take care of most circumstances. The briggs and stratton vacu jet automatic choke carburetor shown here can be identified by the small breather opening 1 red and the choke link cover 1 green.

However with the proper briggs and stratton instructions it clearly states the choke flap should be placed under tension by moving the choke flap at 90 degrees before you tighten the. Carburettor CARB Diaphragm Fits BRIGGS STRATTON 3HP VACU JET CARB 299637. Buy It Now C 1845 shipping.

A S S p Q G o E Q 2 L n s o r e d D D 4. Briggs 18HP Opposed Engine Carb 3 screw parts NA. Top Rated Seller Top Rated Seller.

Briggs and stratton auto choke linkage diagram 120000. The briggs and stratton vacu jet automatic choke carburetor shown here can be identified by the small breather opening 1 red and the choke link cover 1 green. There is an operator presence lever assembly above the muffler.

Remove the two bolts holding the gas tank to the engine. 09-01-2018 0501 PM. The pulsa-jet and vacu-jet carbs were somewhat similar in appearance.

On the pulsa-jet carb the diaphragm was located on the side and could be accessed thru a small cover plate. On the vacu-jet the diaphragm was larger. A very few 80000 were fitted with Vacu-Jet carbs.

These are simple suctions carbs. Engines are usually rated 2 14hp or 2 12hp. Pretty much died out by the end of the 1960s because there was little demand and the Pulsa-Jet produced more power with very little additional manufacturing cost.
