Attach the brake pressure modulator valve BPMV assembly in these vehicles may not have been properly tightened failing to create the seal between two sub-assemblies that is intended to prevent water intrusion. This fits your.
Brakes Brake Modules Valves Tags.
Brake pressure modulator valve bpmv. The ebcmbpmv is located along the inner frame under the vehicle right behind drivers door just follow all of the brake lines to it if I can make a suggestion I would call a salvage yard and get a complete unit cheaper and easier to install the BPMV and EBCMelectronic brake control module are mounted together and you would need a tech 2factory scan tool to release abs tension gears to install only the BPMV. Brake Pressure Modulator Valve BPMV Replacement. The area around the electric hydraulic control unit EHCU MUST be free from loose dirt to prevent contamination of disassembled ABS components.
Thoroughly wash all contaminants from around the EHCU. Disconnect the 3 electrical harness connectors from the. BPMV - Brake Pressure Modulator Valve Internet.
Oct 27 2021 cited 2021 Oct 27. The area around the electronic brake control module EBCM and brake pressure modulator valve BPMV assembly must be free from loose dirt to prevent contamination of disassembled ABS components. Clean the area surrounding the EBCMBPMV of any accumulated dirt and debris.
Disconnect the EBCM electrical connector. Repair Instructions - Brake Pressure Modulator Valve Replacement - For 2008 Chevrolet Uplander. This procedure is found in the Montana SV6 RELAY Terraza Uplander VIN UVX Service Manual.
It is located in the section. Brakes Antilock Brake System Repair Instructions. Service manuals electrical schematics and bulletins for 1995 to current GM vehicles.

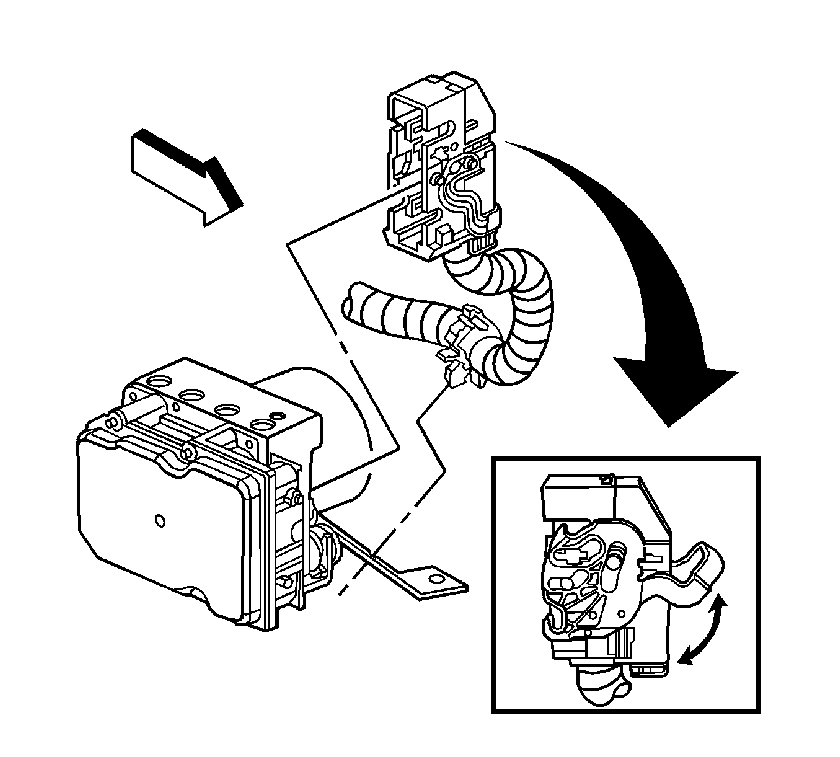

Disconnect the 3 electrical harness connectors from the electronic brake control module EBCM. Make sure that brake lines are tagged and kept in order for proper reassembly. Disconnect 5 brake lines from the brake pressure modulator valve BPMV.
When looking at the brake pipe port face of the BPMV the ports are assigned as follows. End fittings to the master cylinder brake pressure proportioning valve where equipped brake pressure modulator valve BPMV or flexible brake hoses. Cleanliness is important for the proper function of the hydraulic brake system.

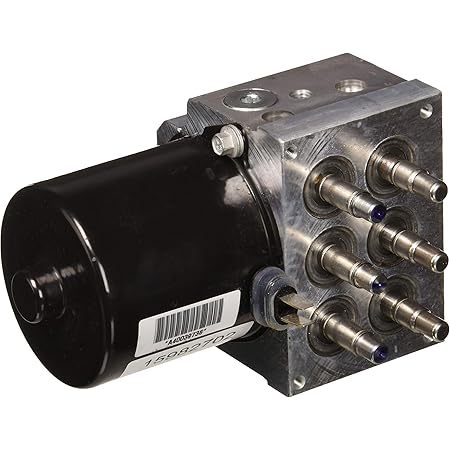

Clean all dirt water rust. ACDelco GM Original Equipment ABS Modulator Valve controls the flow of brake fluid into your brakes providing the critical anti-lock feature. These original equipment modulator valves have been manufactured to fit your GM vehicle providing the same performance durability and service life you expect from General Motors.
The Brake Pressure Modulate Valve is a part of your vehicles anti-lock braking systemABS. It is a device that is controlled by the electric signal that is generated by the ABS module. The brake pressure modulate valve regulates the pressure that is supplied to each ABS controlled brake in the wheels.
The brake pressure modulator valve assembly may be loosened. If screws are loosened it will not be possible to get the brake circuits leak-tight and personal injury may result. ImportantIf the electronic brake control moduleEBCM or brake pressure modulator valveBPMV is to replaced under manufacturers warranty do not disassemble the.
GM has issued a recall for certain 2021 through 2022 Chevy Silverado HD and GMC Sierra HD vehicles due to an issue with the brake pressure modulator valve. Dealers have already been instructed to replace the brake pressure modulator valve at no cost to the customer. The replacement BPMV is an assembly that.
Brake Pressure Modulator Valve BPMV Replacement Removal Procedure 1. Turn the ignition switch to the OFF position. Disconnect the EBCM harness connector.
Remove the BPMV pump motor ground wire. Remove the brake pipes from the master cylinder to the BPMV noting the location. Remove the brake pipes from the BPMV to the front brake.
Visit the GM Store. This fits your. Make sure this fits by entering your model number.
Genuine General Motors OEM product. 120 L x 60 H x 90 W inches. This part is a good used C5 Brake Pressure Modulator Valve which can be installed on a 1997 to 2004 Corvette.
Brakes Brake Modules Valves Tags. 1997 1998 1999 2000 2001 2002 2003 2004 abs active anti lock antilock BPMV brake C5 EBTCM handling JL4 JL9 modulator pressure. The Brake Pressure Modulator Valve BPMV contains a self-diagnostic capability to detect system failures.
When a fault code is set the BPMV may disable 4WAL system and illuminate ANTI-LOCK light for duration of ignition cycle. Fault codes stored by BPMV can be. Attach the brake pressure modulator valve BPMV assembly in these vehicles may not have been properly tightened failing to create the seal between two sub-assemblies that is intended to prevent water intrusion.
If water becomes trapped in the BPMV it could result in a short circuit which could lead to an underhood fire. BPMV - Brake Pressure Modulator Valve. Looking for abbreviations of BPMV.
It is Brake Pressure Modulator Valve. Brake Pressure Modulator Valve listed as BPMV. Place a shop towel under the brake modulator assembly to catch any brake fluid loss.
Prior to disconnecting the brake pipes from the ABS modulator assembly note the locations of the brake pipes to the valve assembly to aid during installation. Disconnect the caliper and wheel cylinder brake pipes 1 from the brake pressure modulator valve BPMV. Remove the brake pressure modulator valve BPMVbolt-1.
NoteDo not pry on the accumulator caps on the underside of theBPMV. Without disconnecting the brake pipe fittings carefully liftthe BPMV assembly-1-upward to release themounting pins from the BPMV bracket insulatorsPosition the BPMV assembly aside and secure with heavymechanics wire or equivalent. ZBrake Pressure Modulator Valve BPMV - The BPMV contains the hydraulic valves and pump motor that are controlled electrically by the EBCM.
The BPMV uses a. The master cylinder pressure sensor is located within the brake pressure modulator valve BPMV. The master cylinder pressure sensor signal to the electronic brake control module EBCM increases as hydraulic pressure in the front brake circuit increases.
Conditions for Setting the DTC co131 Any of the following conditions may cause the DTC. Disconnect the electronic brake control module EBCMelectrical connector by lifting the locking tabsDisconnect the left front brake pipefitting-1-at the brake pressure modulatorvalve BPMVCap the brake pipe fitting and plug the BPMV outlet port toprevent brake fluid loss and contaminationDisconnect the right front brake pipefitting-2-from the BPMVCap the brake pipe fitting and plug the BPMV outlet.
